JCY heavy-duty walking pallet truck rated for 2 tons and 2.5 tons, is a lithium-battery version and a dedicated pedestrian pallet jack for heavy-duty operations. Specifically designed for heavy-duty, high-frequency handling in factories, its frame has ample load-bearing capacity. Equipped with stabilizing wheels, it ensures safe operation under full load. The side-extraction battery allows for quick replacement, enabling uninterrupted operation across multiple shifts. AC drive combined with a Curtiss electronic control system provides powerful performance and a low failure rate, making it suitable for large-volume pallet transfers in warehouses, truck loading and unloading, and short-distance transport of heavy materials on production lines.
The heavy-duty reinforced frame design can withstand long-term high-load handling; additional auxiliary stabilizing wheels reduce the risk of tipping over during turns and full-load driving, significantly improving operational stability; a low-voltage automatic locking lifting function prevents hydraulic lifting when the battery is low, protecting the battery from a hardware perspective and extending its lifespan.

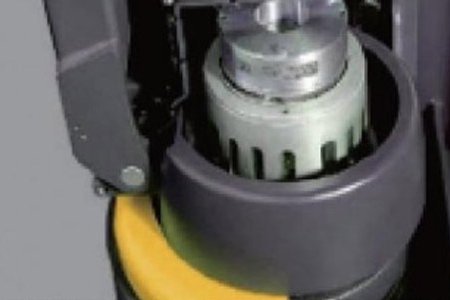

High-power AC drive motor provides sensitive and direct power feedback, ensuring precise start-up and stop control; the motor's maintenance-free structure eliminates the need for regular lubrication, resulting in lower long-term maintenance costs and ample power for heavy-load climbing.

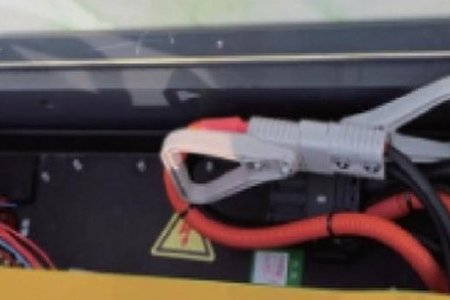

Standard side-pull-out battery structure allows for quick and easy replacement by a single person, seamlessly connecting shift work; optional lithium battery configuration, fully charged in 2 hours, maintenance-free, and offering longer range.
Equipped with an imported Curtis controller, offering high efficiency, high control precision, and strong stability; the entire vehicle supports CAN bus communication, enabling rapid fault diagnosis of core electrical components; modular parts allow for easy disassembly and replacement, saving time and effort in later maintenance.
The soft rubber-wrapped operating handle provides a comfortable grip and integrates a Hall effect accelerometer, emergency stop switch, lifting button, LCD battery meter, hour meter, and other multi-functional components; the operation buttons are centralized and intuitive, easy for beginners to use, and flexible in confined spaces.
| Category | Parameter | Unit | PT20/20Li | PT25/25Li |
| Characteristic | Model | - | PT20/20Li | PT25/25Li |
| Drive By | - | Electric | Electric |
| Operation Mode (manual, walking, standing, driving, picking) | - | walking | walking |
| Rated Load | Q (kg) | 2,000 | 2,500 |
| Load Center Distance | C (mm) | 600 | 600 |
| Wheelbase | y (mm) | 1,330 / 1,400 | 1,330 / 1,400 |
| Weight | Self-weight | kg | 180 / 185 | 195 / 200 |
| wheel and frame | Tyres | - | PU | PU |
| front wheel size | mm | Ø230×70 | Ø230×70 |
| rear wheel size | mm | Ø80×60 | Ø80×60 |
| Balance wheel size(optional) | mm | Ø100×40 | Ø100×40 |
| Tyres Number (x=driven pulley) | - | 1x+2/4 | 1x+2/4 |
| front wheel tread | b10 (mm) | 540 | 540 |
| rear wheel tread | b11 (mm) | 390 | 390 |
| Basic Dimension | Lifting Height | h3 (mm) | 115 | 115 |
| Descent Height | h13 (mm) | 85 | 85 |
| Overall Length | l1 (mm) | 1,715 (1,785) | 1,715 (1,785) |
| Overall Width | b1 (mm) | 800 | 800 |
| Width of fork outside | s/e/l (mm) | 53/160/1,150(1,220) | 53/160/1,150(1,220) |
| Ground clearance of truck frame | b5 (mm) | 550 (685) | 550 (685) |
| working channel width, 800×1,200 tray(1,200 placed along the fork) | m2 (mm) | 32 | 32 |
| working channel width, 1,000×1,200 tray(1,200 placed along the fork) | Ast (mm) | 2,205 | 2,205 |
| Turning radius | Wa (mm) | 2,290 | 2,290 |
|
| 1,520 / 1,590 | 1,520 / 1,590 |
| Performance | Traveling speed with load/unload | km/h | 4.2 / 4.6 | 4.2 / 4.6 |
| Lifting speed with load/unload | mm/s | 30 / 53 | 30 / 53 |
| Decent speed with load/unload | mm/s | 49 / 36 | 49 / 36 |
| Climbing speed with load/unload | % | 4/10 | 4/10 |
| Traveling brake | - | Electromagnetic braking | Electromagnetic braking |
| Electric Motor | Drive motor power | kW | 1.25 | 1.25 |
| Lifting motor power | kW | 0.8 | 2.2 |
| Others | Battery Voltage, rated capacity | V/Ah | 24/200 (Lithium) / 24/210 (Lead-acid) | 24/200 (Lithium) / 24/210 (Lead-acid) |
| Noise | dB(A) | <70 | <70 |
