JCY heavy-duty standing pallet truck with rated load capacities of 2 tons/2.5 tons/3 tons, and a lithium-ion battery version is also available. Featuring a heavy-duty, high-strength frame design with ample load-bearing capacity, they are equipped with a standing operating foot pedal and safety guard arms. Combined with electronic power steering, they are capable of long-distance factory transfers, batch handling on assembly lines, and heavy-duty pallet turnover in warehouses. The side-extractable battery supports multi-shift operation, and the lithium-ion battery version offers fast charging and high efficiency, making them the mainstay model for high-intensity continuous handling in large and medium-sized warehouses and factories.
The heavy-duty dedicated frame is rigid and has ample load-bearing capacity, preventing deformation even when carrying heavy loads for extended periods. The addition of auxiliary stabilizing wheels enhances safety during fully loaded turns and rollover prevention. The stand-on operating configuration, with foot pedals and a surround-type safety guard arm, provides a stable position for operators, suitable for long-distance, long-duration transport.
Equipped with an electronic power steering system, steering is light and effortless, reducing fatigue during extended operation. It allows for agile turning and U-turns in narrow passages, reducing driver workload.
Side-pull battery design allows for easy and quick battery swapping, enabling uninterrupted shift work. Standard configuration includes lead-acid batteries, with lithium batteries optional. The lithium battery version supports fast charging, is maintenance-free, and offers longer range. Automatic low-voltage protection shuts off the lifting mechanism, preventing lifting when the battery is low, effectively protecting the battery and extending its lifespan.

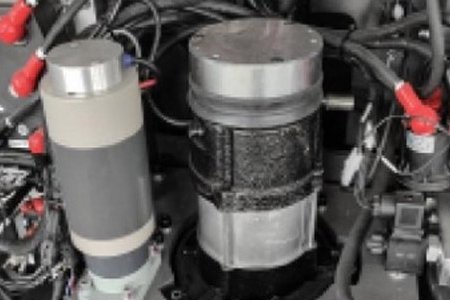

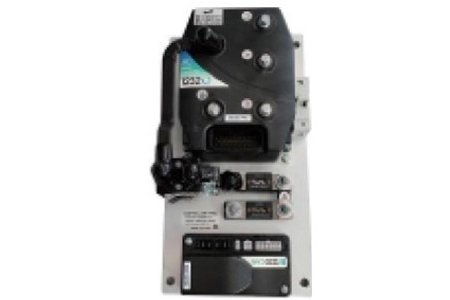

High-power AC drive motor provides rapid and direct power response. The maintenance-free design reduces future maintenance costs, and it offers ample power for heavy-duty climbing. Equipped with a Curtis controller, it operates efficiently, accurately, and stably. It supports CAN bus fault diagnosis, making core component inspection and troubleshooting very convenient. Modular parts allow for easy replacement.
The fork lifting is equipped with an electronic limit device, ensuring a smooth and impact-free lifting process. This avoids mechanical hard limit impacts, effectively protects the hydraulic lifting motor, and extends the service life of the entire hydraulic system.
| Performance | Parameter | Unit | PT20S/25S, PT20SLi/25SLi | PT30S, PT30Li |
| Power Type |
|
| Electric | Electric |
| Operation Mode |
|
| Standing | Standing |
| Rated Load Capacity | Q | kg | 2,000/2,500 | 3,000 |
| Load center distance | C | mm | 600 | 600 |
| wheel tread | Y | mm | 1,450 | 1,450 |
| weight with battery |
| kg | 700 | 730 |
| Tyres | front |
| PU | PU |
| Tyres size (front) | rear | mm | Ø80×80 | Ø80×80 |
| Auxiliary wheel size (rear) |
| mm | Ø100×40 | Ø100×40 |
| Drive wheel |
| mm | Ø230×75 | Ø230×75 |
| front wheel tread/rear wheel tread |
| mm | 505/560 | 505/560 |
| Lifting height | h4 | mm | 200 | 200 |
| ground clearance of truck | m2 | mm | 40 | 40 |
| descent height of fork | h13 | mm | 85 | 85 |
| Overall Length | l1 | mm | 1,924 | 1,924 |
| Overall Width | b1 | mm | 800 | 800 |
| fork size | s/e/l | mm | 55/180/1,150 | 55/180/1,150 |
| fork width outside | b5 | mm | 550/685 | 550/685 |
| Turning radius | Wa | mm | 1,720 | 1,720 |
| Traveling speed (Load/unload) |
| km/h | 5/5.3 | 5/5.3 |
| Lifting speed (Load/unload) |
| mm/s | 35/45 | 35/45 |
| Descent speed (Load/unload) |
| mm/s | 50/40 | 50/40 |
| Max. Gradeability (Load/unload) |
| % | 8/16 | 8/16 |
| Traveling brake |
|
| Electromagnetic | Electromagnetic |
| S3=60 minutes: Driving motor output |
| kW | 1.5 | 2.5 |
| S3=15%: lifting motor |
| kW | 2.2 | 2.2 |
| Battery voltage |
| V | 24 | 24 |
| battery capacity |
| Ah | 150 (Lithium battery) | 200 (Lithium battery) |
| Noise |
| dB(A) | 70 | 70 |
