JCY economical lithium pallet truck has a rated load capacity of 1.5-2 tons. Its compact and lightweight frame makes it ideal for short-distance pallet transport in warehouses, loading and unloading truck tailgates, supermarket delivery, and light-duty material handling in factories—situations requiring frequent, light-load handling. Powered by lithium batteries and equipped with a Curtiss electronic control system, its rainproof and dustproof structure allows for outdoor operation in rainy weather. Positioned as a high-performance, entry-level electric pallet jack, it significantly reduces manual labor intensity by replacing manual hydraulic pallet trucks, and can operate flexibly in narrow aisles and inside the truck bed.

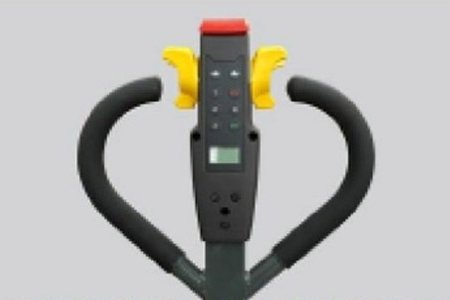

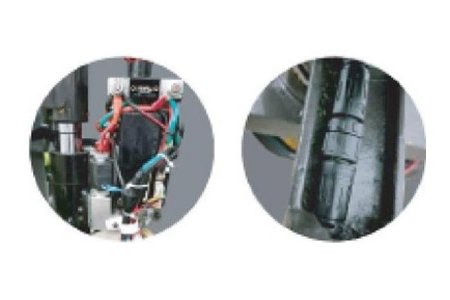

The vehicle features a lightweight and compact frame design with an 8mm thick steel base plate and reinforced side bending tubes, resulting in high torsional strength, durability, and resistance to deformation. Additional balance wheels ensure stability under full load. It is equipped with an independent hydraulic system and aviation-grade waterproof connectors with IP65 protection, preventing wiring harness twisting with the wheels and ensuring stable operation even in rainy weather. A low-voltage automatic lifting protection function effectively extends the lithium battery's lifespan. The optimized drive unit allows for quick replacement of polyurethane wheels without disassembling the drive assembly, simplifying maintenance. It features a 20Ah lithium battery that charges in 2 hours and provides 4 hours of continuous operation on a single charge. Battery replacement is quick and easy (10 seconds). The power system has a 6% climbing ability, suitable for navigating small inclines in factory areas. The control unit features a comfortable, soft-touch handle with a slow-speed mode. It can be operated even with the handle upright, providing smooth and agile steering in cargo areas and narrow passages. This comprehensive solution balances reliability, range, and user comfort, making it a cost-effective option for small and micro-enterprises upgrading their electric material handling equipment.
| Model | - | PT15ELi | PT20ELi |
| Drive by | - | Electric | Electric |
| Operation mode | - | Walking | Walking |
| Rated load | Q(kg) | 1,500 | 2,000 |
| Load center distance | C(mm) | 600 | 600 |
| Wheelbase | Y/y(mm) | 1,195 | 1,312 |
| Self-weight with battery | kg | 140 | 160 |
| Shaft load, front/rear axle at full load | kg | 590 / 1,050 | 625 / 1,528 |
| Shaft load, front/rear axle at empty | kg | 40 / 100 | 125 / 35 |
| Tyres | - | Polyurethane | Polyurethane |
| Front wheel specification | mm | Ø210/75 | Ø210×70 |
| Rear wheel specification | mm | Ø80×70 | Ø80×60 |
| Balance wheel size | mm | Ø60×30 | Ø60×30 |
| Number of wheels (front/rear, x=drive wheel) | - | 1x+4 | 1x+2 / 4 |
| Front wheel tread | b10(mm) | — | 420 |
| Rear wheel tread | b11(mm) | 390 | 525 |
| Lifting height | h3(mm) | 115 | 115 |
| Min./Max. height of handle | h14(mm) | 650 / 1,187 | 780 / 1,240 |
| Fork height (minimum) | h13(mm) | 85 | 85 |
| Overall length | l1(mm) | 1,660 | 1,640 |
| Fork length / Body length | l2(mm) | 510 | 420 |
| Frame width / Overall width | b1(mm) | 550 | 695 |
| Fork size (s×e×l) | mm | 55/160/1,150 (1,220) | 53/160/1,220 |
| Fork outside width | b5(mm) | 550 / 685 | 685 |
| Ground clearance | m2(mm) | 25 | 32 |
| Working aisle width (800×1200 pallet, 1200 along fork) | Ast(mm) | 1,910 | 1,900 |
| Turning radius | Wa(mm) | 1,405 | 1,500 |
| Travel speed (full / empty) | km/h | 4 / 4.5 | 4.0 / 4.5 |
| Lifting speed (full / empty) | m/s | 0.17 / 0.20 | 0.030 / 0.053 |
| Lowering speed (full / empty) | m/s | 0.48 / 0.3 | 0.049 / 0.036 |
| Max. gradeability (full / empty) | % | 6/16 | 10/20 |
| Driving brake | - | Electromagnetic braking | Electromagnetic braking |
| Driving motor power | kW | 0.75 | 1 |
| Lifting motor power | kW | 0.5 | 0.8 |
| Battery (voltage / capacity) | V/Ah | 24/20、24/30 | 48/20、48/30 |
| Battery weight | kg | 5/7 | 11.5 / 15 |
| Drive control mode | - | DC | DC |
| Driver's ear noise level | db(A) | 75 | <70 |
