JCY 5-6 ton heavy-duty lithium-ion battery-powered counterbalance forklift is designed for both indoor and outdoor transport of medium to heavy-duty goods, replacing traditional diesel forklifts. It features zero emissions, low noise, and energy efficiency. Equipped with a dual-motor drive system and a full set of imported electrical components, it boasts powerful heavy-duty performance and precise, stable electronic control. The reinforced heavy-duty frame, combined with a large-capacity battery and a comfortable panoramic cab, balances high-strength heavy-duty performance, convenient maintenance, and operational comfort, making it suitable for medium to heavy-duty applications in heavy industry, building materials, and port indoor storage yards.
The compact dual-motor drive system delivers high output torque, outstanding driving and climbing performance, and strong climbing ability under full load; power remains stable and does not diminish during long-term continuous heavy-load operation.
Features a dynamic load-sensing priority steering system, providing flexible steering control, smooth ride, and easy maneuverability in narrow aisles.
Equipped with a high-end controller, power connectors, AMP waterproof wiring harness, and imported accelerator; the electronic control is professionally tuned, ensuring precise and efficient walking and lifting movements; the electrical components are waterproof and dustproof, suitable for complex and humid working conditions.
The forklift supports optional configurations for batteries, controllers, enclosed cabs, air conditioning, specialized tires, and various forklift accessories. The entire machine configuration can be customized to meet different operational needs based on site conditions.

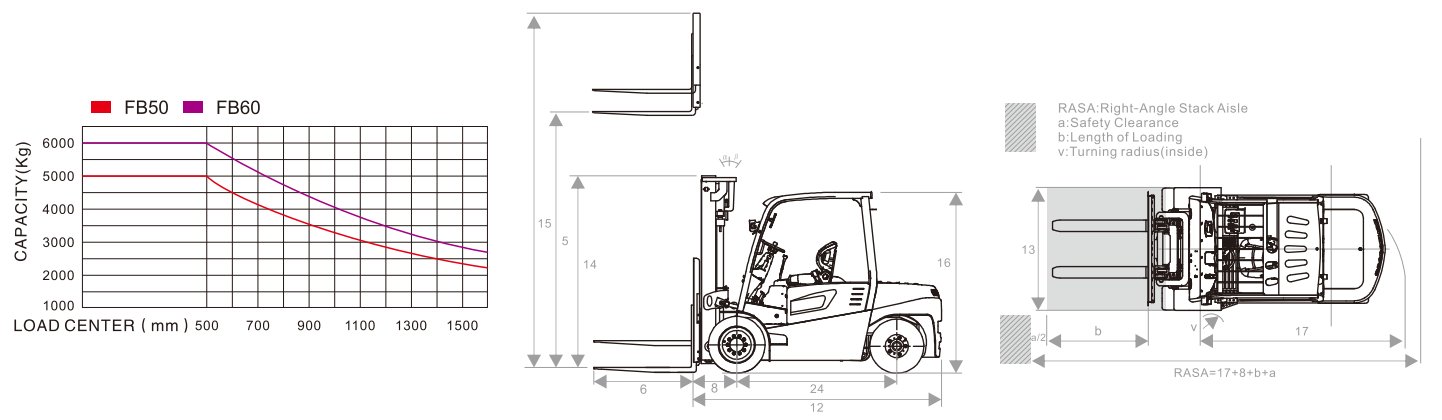

| General | Model |
| FB50 | FB60 |
| Power Type |
| Electric | Electric |
| Rated Capacity | kg | 5000 | 6000 |
| Load Centre | mm | 500 | 500 |
| characreristic&Dimension | Lift Height | mm | 3000 | 3000 |
| Fork Size | L×W×T | mm | 1070×150×50 | 1070×150×50 |
| Mast Tilt Angle | F/R | Deg | 6°/9° | 6°/9° |
| Front Overhang | mm | 579 | 579 |
| Tread | F/R | mm | 1280/1190 | 1280/1190 |
| Ground Clearance | mm | 170 | 170 |
| Fork Spread | Min. / Max. | mm | 300/1380 | 300/1380 |
| Overall Dimension | Length to face of fork | mm | 3140 | 3140 |
| Overall Width | mm | 1600 | 1600 |
| Mast Lowered Height | mm | 2270 | 2270 |
| Mast Extended Height | mm | 4165 | 4165 |
| Overhead Guard Height | mm | 2255 | 2255 |
| Turning Radius | mm | 2817 | 2817 |
| Min. insecting aisle | mm | 2955 | 2955 |
| Perfornance | Speed | Travel | km/h | 14 | 14 |
| Lifting | mm/s | 280 | 260 |
| Max.Gradeability | % | 15 | 12 |
| Chassis | Tire | Front |
| 28×12.5-15 | 28×12.5-15 |
| Rear |
| 7.00-12-12 PR | 7.00-12-12 PR |
| Wheelbase | mm | 2000 | 2000 |
| Service weight | kg | 7970 | 8460 |
| Power&Transimission | Motor | Drive Motor | kw | 11×2 | 11×2 |
| Lift Motor | kw | 12×2 | 12×2 |
| Battery | Voltage/Capacity | V/Ah | 80/700 | 80/800 |
| Controller | Manufacturer |
| CURTIS | CURTIS |
| Type |
| AC | AC |
| Operating Pressure for Attachment | Mpa | 18 | 18 |
