JCY 1.6–2 ton three-point lithium-ion electric counterbalance forklifts are designed for indoor light-duty cargo handling in narrow aisles. They are intelligent, efficient, zero-emission, low-noise, energy-saving, and environmentally friendly. Utilizing a three-point chassis structure, they feature a smaller turning radius and a compact, agile design. Equipped with a side-accessible battery solution, a high-efficiency drive system, and a user-friendly driving space, they are easy to operate and maintain, making them widely adaptable to space-constrained indoor warehousing conditions.
The unique three-point chassis design provides a small turning radius and sensitive steering, allowing for smooth passage through narrow warehouse aisles, maximizing space utilization and saving time and effort in handling.
The optimized drive unit delivers smooth power output with excellent energy efficiency. Rapid walking and lifting responses ensure superior continuous operation, meeting the demands of high-frequency daily handling.
The side-access battery design eliminates the need for cumbersome lithium battery removal, inspection, and replacement, significantly reducing downtime and increasing vehicle uptime.
The well-designed driver and passenger space provides ample legroom, alleviating fatigue during long working hours and improving operating comfort and efficiency.
The forklift supports optional configurations for batteries, controllers, enclosed cabs, air conditioning, specialized tires, and various forklift accessories. The entire machine configuration can be customized to meet different operational needs based on site conditions.

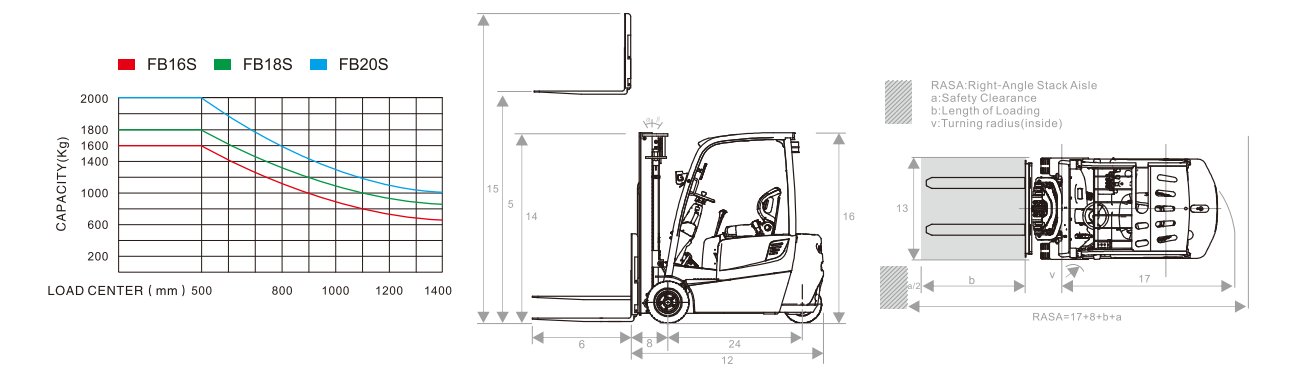

| Model |
| FB16S | FB18S | FB20S |
| Power Type |
| Electric | Electric | Electric |
| Rated Capacity (kg) | kg | 1600 | 1800 | 2000 |
| Load Centre | mm | 500 | 500 | 500 |
| Lift Height | mm | 3000 | 3000 | 3000 |
| Fork Size | L×W×T | mm | 920×120×35 | 920×120×35 | 1070×120×40 |
| Mast Tilt Angle | F/R, | Deg | 6°/6° | 6°/6° | 6°/6° |
Front Overhang
| mm | 390 | 390 | 395 |
| Tread | F/R, | mm | 924/208 | 924/208 | 924/208 |
| Ground Clearance | mm | 90 | 90 | 90 |
| Fork Spread | Min. / Max. | mm | 240/970 | 240/970 | 240/970 |
| Overall Dimension | Length to face of fork | mm | 2100 | 2100 | 2105 |
| Overall Width | mm | 1100 | 1100 | 1100 |
| Mast Lowered Height | mm | 2010 | 2010 | 2010 |
| Mast Extended Height | mm | 3940 | 3940 | 3940 |
| Overhead Guard Height | mm | 2055 | 2055 | 2055 |
| Turning Radius | mm
| 1690 | 1690 | 1690 |
| Min. insecting aisle | mm | 2300 | 2300 | 2300 |
| Max.Gradeability | % | 15 | 15 | 15 |
| Tire | Front |
| 18×7-8 | 18×7-8 | 18×7-8 |
| Rear |
| 16×6-8 | 16×6-8 | 16×6-8 |
| Wheelbase | mm | 1460 | 1460 | 1460 |
| Service weight | kg | 3420 | 3520 | 3760 |
| Motor | Drive Motor | kw | 2×4.5 | 2×4.5 | 2×4.5 |
| Lift Motor | kw | 8.6 | 8.6 | 8.6 |
| Battery | Voltage/Capacity | V/Ah | 48/490 | 48/490 | 48/560 |
| Controller | Manufacturer |
| CURTIS | CURTIS | CURTIS |
| Type |
| AC | AC | AC |
| Operating Pressure for Attachment | Mpa | 14.5 | 14.5 | 14.5 |
