FDRTC4 2-3ton Rough Terrain Forklift
Fully suspended overhead guard and off-road tubeless tires provide excellent vibration and noise reduction, resulting in superior off-road performance.
Electronic switch allows for switching between 2WD and 4WD modes.
High-mounted air intake structure and drip-proof device effectively protect the powertrain.
Convenient and intelligent operation: Opening the hood allows for easy access to core components such as the integrated control box, battery, and air filter.
PRODUCT DETAILS
JCY 2-3TON ROUGH TERRAIN FORKLIFT PRODUCT OVERVIEW
JCY 2-3 ton internal combustion rough terrain counterbalance forklift is developed for complex unpaved outdoor conditions and can serve as an outdoor supplement to indoor forklifts and ordinary highway forklifts. The vehicle is equipped with a mature internal combustion powertrain, supports electronic switching between two-wheel drive and four-wheel drive, and features a high ground clearance off-road chassis, professional off-road vacuum tires, a vibration-damping and noise-reducing overhead guard, a user-friendly electronic shifting system, and a comprehensive power protection structure. It balances robust off-road capabilities, a comfortable driving experience, and easy maintenance. With ample power and strong adaptability, it can easily handle muddy, potholed, and soft road surfaces.
CORE PRODUCT ADVANTAGES
Outstanding Off-Road Performance
The vehicle boasts a 275mm ground clearance; equipped with large, deep-tread off-road tubeless tires, providing excellent shock absorption and strong grip; supports electronic switching for quick switching between two-wheel drive and four-wheel drive modes, easily adapting to various complex off-road terrains.
Comfortable Driving Experience with Reduced Vibration and Noise
Equipped with a fully suspended roof guard, effectively reducing road impacts and engine vibration and noise; anti-slip entry steps ensure safe and reliable entry and exit.
Intelligent and Convenient Control with Reliable Power Protection
Features a rotary electronic gear shifter for easy and effortless gear changes; the instrument cluster displays real-time vehicle operating data and fault diagnosis information; standard high-mounted air intake structure with a drip-proof exhaust system reduces rainwater and dust intrusion, providing long-term protection for the powertrain.
Convenient Maintenance and a Wide Range of Optional Features
Opening the hood allows direct access to core components such as the integrated electronic control box, battery, and air filter, minimizing downtime for maintenance; flexible lighting options are available, supporting the addition of work lights, warning lights, blue lights, and full LED lighting throughout the vehicle.
Flexible Selection & Customization of All Vehicle Components
The forklift supports a variety of engines from China, Japan, and other regions, and also supports customization of the enclosed cab, air conditioning, specialized tires, and various forklift accessories. The complete machine configuration can be customized according to site conditions to meet different operational needs.
PRODUCT TECHNICAL PARAMETERS
| Model | FD20RTC4 | FD25RTC4 | FD30RTC4 | |
| Characteristic | ||||
| Model | - | FD20RTC4 | FD25RTC4 | FD30RTC4 |
| Power Type | - | Diesel | Diesel | Diesel |
| Rated Capacity | kg | 2000 | 2500 | 3000 |
| Load Centre | mm | 500 | 500 | 500 |
| Service weight | kg | 4620 | 4800 | 5080 |
| Tyre & Chassis | ||||
| Tyre Type (Front/Rear) | - | Tubeless Tyre | Tubeless Tyre | Tubeless Tyre |
| Wheel number X = drive wheel (Front/Rear) | - | 2X/2X | 2X/2X | 2X/2X |
| Tyre Size (Front) | - | 14-17.5-14PR | 14-17.5-14PR | 14-17.5-14PR |
| Tyre Size (Rear) | - | 10.0/75-15.3-12PR | 10.0/75-15.3-12PR | 10.0/75-15.3-12PR |
| Front Tread | W1(mm) | 1217 | 1217 | 1217 |
| Rear Tread | W2(mm) | 1206 | 1206 | 1206 |
| Wheelbase | L4(mm) | 1920 | 1920 | 1920 |
| Size | ||||
| Fork Size (L×W×T) | L1(mm) | 1220×120×40 | 1220×120×40 | 1220×125×45 |
| Mast Tilt Angle (F/R) | α/β(deg) | 10/12 | 10/12 | 10/12 |
| Lift Height | H(mm) | 3000 | 3000 | 3000 |
| Mast Lowered Height | H1(mm) | 2235 | 2235 | 2265 |
| Free Lift Height | H5(mm) | 160 | 160 | 165 |
| Mast Extended Height | H2(mm) | 4224 | 4224 | 4342 |
| Length to Face of Fork | L(mm) | 3110 | 3110 | 3110 |
| Overall Width | W(mm) | 1560 | 1560 | 1560 |
| Overhead Guard Height | H3(mm) | 2260 | 2260 | 2260 |
| Front Overhang | L2(mm) | 580 | 580 | 580 |
| Rear Overhang | L3(mm) | 610 | 610 | 610 |
| Turning Radius (outside) | r(mm) | 3200 | 3200 | 3200 |
| Ground Clearance (Bottom of mast) | H4(mm) | 270 | 270 | 270 |
| Min.intersecting aisle | Ra(mm) | 2780 | 2780 | 2780 |
| Min.right angle stacking aisle width | RASA(mm) | 5200 | 5200 | 5200 |
| Performance | ||||
| Max.Travel Speed (Full load/No load) | km/h | 21/22 | 21/22 | 20/21 |
| Lifting Speed (Full load/No load) | mm/s | 530/560 | 530/560 | 510/550 |
| Lowering Speed (Full load/No load) | mm/s | ≤600/≥300 | ≤600/≥300 | ≤600/≥300 |
| Max.Gradeability (Full load) | % | 50 | 50 | 40 |
| Power & Transmissions | ||||
| Engine Model | - | Xinchai4D32G31 | 新柴 4D32G31 | Xinchai4D32G31 |
| Rated output/r.p.m. | kW/rpm | 36.8/2500 | 36.8/2500 | 36.8/2500 |
| Rated torque/r.p.m. | N·m/rpm | 186/1600~1800 | 186/1600~1800 | 186/1600~1800 |
| No.of Cylinder | - | 4 | 4 | 4 |
| Bore×Stroke | mm | 98×105 | 98×105 | 98×105 |
| Displacement | L | 3.167 | 3.167 | 3.167 |
| Emission Standards | - | China Stage III | China Stage III | China Stage III |
| Fuel Tank Capacity | L | 60 | 60 | 60 |
| Battery (Voltage/Capacity) | V/Ah | 12/80 | 12/80 | 12/80 |
| Transmission Type | - | Hydraulic | Hydraulic | Hydraulic |
| Stage FWD/RVS | - | 2/1 Power Shift | 2/1 Power Shift | 2/1 Power Shift |
| Operating Pressure | MPa | 18 | 18 | 18 |

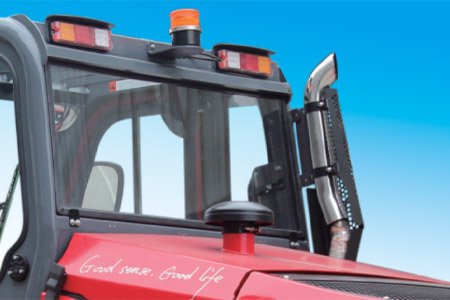

High Position Intake and Exhaust System
Vertical exhaust with good drainage performance, provide all weather operations.
Vertical exhaust effectively prevent ground dust and rain from entering the inlet.
Super High Ground Clearance
Front and rear wheels use deep-pattern widening off-road vacuum tires, with strong off-road capability, excellent vehicle stability and shock absorption.
Steering axle swings up to 7°, good maintaining grip on rugged mountain or muddy terrain.
350mm ground clearance, strong pass ability.

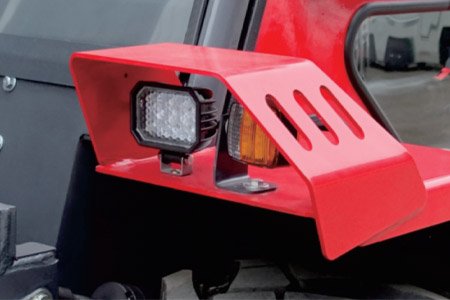

Excellent Lighting System
The full machine equipped with LED lights, low energy consumption, long service life and etc.
Additional front and rear LED lights for options.
