JCY 3-5 ton internal combustion off-road forklift is designed for unpaved, complex, and harsh working conditions such as construction sites, farms, orchards, sand and gravel yards, and forest areas. It is specifically designed for handling heavy-duty materials on muddy, potholed, soft, and rugged terrain. The vehicle is equipped with a compliant diesel powertrain, a switchable two-wheel/four-wheel drive system, and an adaptive limited-slip differential. It boasts a 350mm ground clearance and professional off-road tires, providing outstanding off-road performance. Reliable in all weather conditions, it is suitable for multi-shift outdoor heavy-duty loading, unloading, stacking, and short-distance transport operations.
Equipped with a high-power diesel engine, delivering a maximum power of 54.9kW, meeting European Stage 3B and North American EPA Tier 4 emission standards. Ample power ensures stable support for extended periods of heavy-duty field operations.

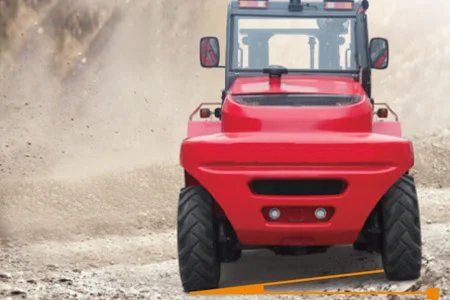

Supports electronic switching between two-wheel drive and four-wheel drive modes; front and rear axles are equipped with adaptive limited-slip differentials, maintaining traction even with single-wheel slippage; the vehicle boasts a ground clearance of up to 350mm, coupled with deep-tread, widened off-road tubeless tires, allowing for a steering angle of up to 7°, providing excellent grip and mobility on muddy, mountainous, and uneven terrain.
A wide-view reinforced mast offers 10% better visibility than standard masts; constructed with high-strength alloy steel for enhanced load-bearing capacity; the mast tilts forward by 10° and backward by 12°, ensuring smooth lifting operations and maximizing cargo safety.

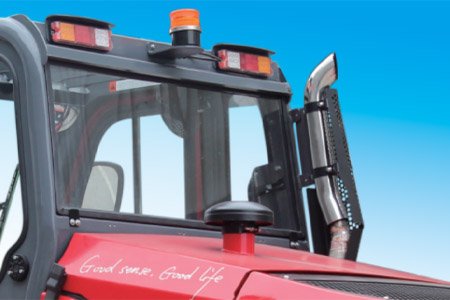

A high-mounted air intake paired with a vertical exhaust system effectively blocks dust and rainwater intrusion, supporting all-weather field operations; optional standard overhead guard or enclosed cab, with the enclosed cab capable of being equipped with heating and air conditioning; ergonomic control layout, equipped with an electronic gear shifter and a CAN bus LCD instrument panel for real-time vehicle operation information.
The cab supports one-button electric forward tilting and integrates core components such as the electrical control box, battery, and air filter for easy inspection and maintenance. Maintenance can be performed without special tools, significantly reducing downtime for maintenance.
The forklift supports a variety of engines from China, Japan, and other regions, and also supports customization of the enclosed cab, air conditioning, specialized tires, and various forklift accessories. The complete machine configuration can be customized according to site conditions to meet different operational needs.
| Model | FD30RT4 | FD35RT4 | FD50RT4 |
| Power Type | Diesel | Diesel | Diesel |
| Rated Capacity | 3000 kg | 3500 kg | 5000kg |
| Load Centre | 500 mm | 500 mm | 600mm |
| Lift Height | 3000 mm | 3000 mm | 3000mm |
| Fork Size (L×W×T) | 1220×125×45 mm | 1220×125×50 mm | 1220×150×60 mm |
| Mast Tilt Angle (F/R) | 10°/12° | 10°/12° | 12°/12° |
| Front Overhang (Wheel center to fork face) | 684 mm | 699 mm | 736mm |
| Ground Clearance (Bottom of mast) | 270 mm | 270 mm | 330mm |
| Length to face of fork (Without fork) | 3252 mm | 3252 mm | 3496 |
| Overall Width | 1835 mm | 1835 mm | 2082 |
| Mast Lowered Height | 2230 mm | 2260 mm | 2426 |
| Overhead Guard Height | 2250 mm | 2250 mm | 2426mm |
| Turning Radius (outside) | 4380 mm | 4380 mm | 4540mm |
| Travel Speed (Empty load) | 25 km/h | 25 km/h | 23km/h |
| Lifting Speed (Full load) | 480 mm/s | 480 mm/s | 380mm/s |
| Max. Gradeability | 30% | 30% | 30% |
| Tire (Front) | 405/70-20-14 PR | 405/70-20-14 PR | 445/70R19.5 |
| Tire (Rear) | 10.0/75-15.3-12 PR | 10.0/75-15.3-12 PR | 12-16.5NHS |
| Wheelbase | 1990 mm | 1990 mm | 2050 mm |
| Service Weight | 5700 kg | 5900 kg | 8850 kg |
| Battery (Voltage/Capacity) | 12V/120Ah | 12V/120Ah | 12V/120Ah |
| Engine Model | 4H50TIC | 4H50TIC | QSF2.8T4TC74L |
| Engine Manufacturer | HATZ | HATZ | Cummins |
| Rated Output/r.p.m. | 54.9 kW / 2600 rpm | 54.9 kW / 2600 rpm | 55 kW //2500 rpm |
| Rated Torque/r.p.m. | 240 N·m / 1600~1900 rpm | 240 N·m / 1600~1900 rpm | 300 N·m / 1600 rpm |
| No. of Cylinder | 4 | 4 | 4 |
| Bore×Stroke | 84 mm × 88 mm | 84 mm × 88 mm | 94 mm × 100 mm |
| Displacement | 1952 cc | 1952 cc | 2800 cc |
| Fuel Tank Capacity | 80 L | 80 L | 135 L |
| Transmission Type | Hydraulic | Hydraulic | Hydraulic |
| Transmission Stage (FWD/RVS) | 3/2 | 3/2 | 3/3 |
| Driving Type | 2WD/4WD | 2WD/4WD | 2WD/4WD |
