JCY TL875 telehandler features a robust hydraulic telescopic boom with a parallel guide structure. It is equipped with a front-end attachment hydraulic circuit, a proportional load torque protection system conforming to EN 150000 standards, multi-mode power distribution, and energy-saving driving program control. The cab features a luxurious shock-absorbing seat with a seatbelt and backrest. The machine's compact and flexible structure allows for easy adaptation to various quick-change attachments such as forks and buckets. It balances heavy-duty safety, operational comfort, energy efficiency, and versatility, making it widely applicable for farm stacking, greenhouse material handling, construction site light lifting, and warehouse high-level stacking.
Equipped with a proportional load torque protection system strictly adhering to EN 150000 safety standards, this system monitors load and lifting height in real time, automatically locking dangerous actions in case of overload, effectively eliminating the risk of tipping over during lifting, and significantly improving safety during heavy-duty operations.
The telescopic boom features a parallel guide structure, resulting in lower friction loss during operation, smoother boom lifting without deviation, reduced component wear, extended overall machine lifespan, and enhanced reliability under high-intensity, repeated lifting conditions.
A front-end hydraulic output interface is provided for direct installation of hydraulic attachments such as forks, buckets, grabs, and aerial work platforms, quickly enabling multi-functional switching between forklift loading, shoveling, grabbing, and aerial work, increasing equipment utilization.
Supports multiple adjustable operating modes, with hydraulic power distributed as needed. Simultaneously, electronic control of the driving program reduces power wastage, providing smooth operation and reducing fuel consumption while ensuring sufficient power, resulting in greater long-term economic benefits.
The compact design of the whole machine allows for easy passage through narrow aisles and low-ceilinged factory buildings; the cab is equipped with a shock-absorbing luxury seat with backrest and seat belt to cushion the impact of bumps and fatigue, and to balance the comfort of operation and the passive protection of personnel.

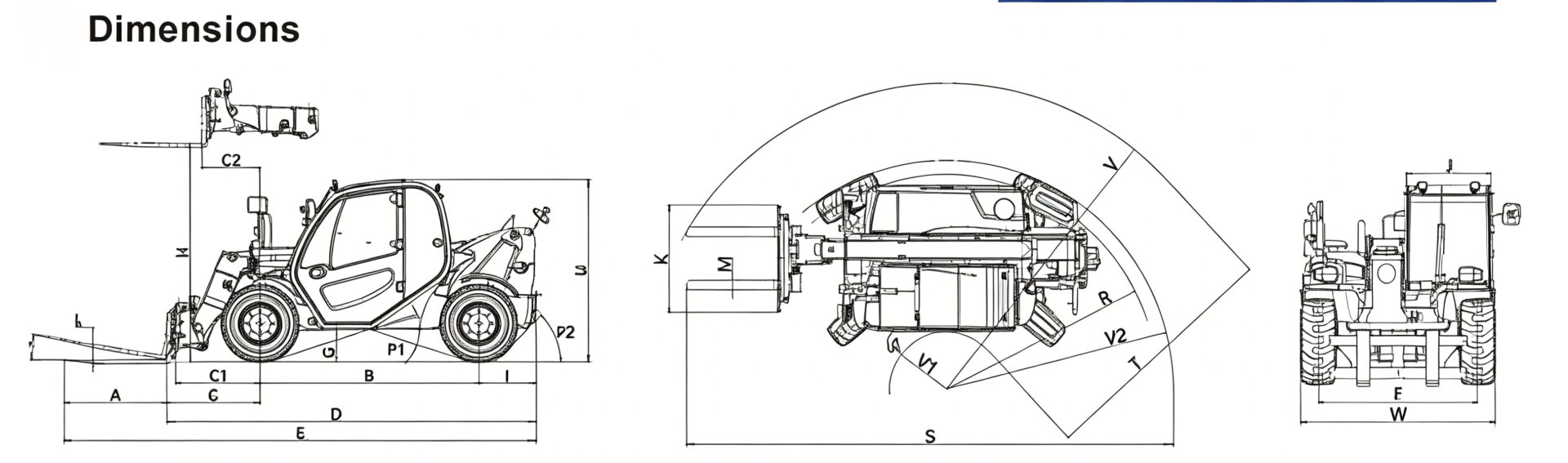

| Rated capacity | 2500kg | Fork length | A 1200 |
| No-load weight (with fork) | 4900kg | Wheel base | B 2300 |
| Working voltage | 12v | Fork front overhang | C 978 |
| Battery capacity | 110AH | Front suspension of pylon | C1 891 |
| Engine | Kubota | High fork front suspension distance | C2 480 |
| Emission standard | EU Stage III/EU Stage V/T4F | Total length without fork | D 3882 |
| Model | v3307 | Total length with fork | E 5090 |
| Number of cylinders/displacement | 4 cylinder / 3.331L | Wheelbase | F 1494 |
| Engine power | 54.6kw | Ground clearance | G 330 |
| Maximum torque/engine revolutions | 2600 RPM | Maximum fork lifting height | H 5860 |
| Maximum speed | 28km/h | Rear overhang | I 603 |
| Type of cooling | Water cooling | Cab width | J 800 |
| Hydraulic tank volume | 75L | Width of fork rack | K 1310 |
| Fuel tank volume | 68L | Fork thickness | L 40 |
| Steering wheels (front/rear) | 2/2 | Fork Width | M 120 |
| Driving wheel | 2/2 | Maximum overslope Angle | P1 36 |
| Operation mode | Centralized operation handle | Departure angle | P2 47 |
| Travel speed standard | 0-10km/h / 0-28km/h | Minimum turning radius outside tire center | R 3000 |
| Driving hydraulic system working pressure(Max.) | 40MPA | Minimum channel width for right Angle stacking | S 7830 |
| Operating hydraulic system flow(Max.) | 90L/min | Right-angle channel Minimum channel width | T 3700 |
| Working hydraulic pressure(Max.) | 23.5MPA | Cab height | U 1945 |
| Minimum turning radius of outer tire edge | V2 3180 | Minimum outside turning radius | V 4500 |
| Outer width | W 1828 | Minimum inside turning radius | V1 800 |
