JCY skid steer loader features a zero-turn differential steering structure. Equipped with a Kubota engine and imported Italian hydraulic pumps and main control valves, its power hydraulic system boasts stable operation and a low failure rate. With 200mm narrow tracks, the machine's width is only 900mm, allowing for easy passage through narrow farmhouses, greenhouse aisles, and enclosed doorways. Leveraging its powerful four-wheel drive and hydraulic quick-change attachment interface, it can be fitted with various accessories such as buckets, forks, sweepers, snow throwers, and breakers. Widely applicable in confined spaces such as landscaping, livestock manure removal, indoor demolition and renovation, factory sanitation and snow removal, and small-scale infrastructure earthwork, it is a highly flexible and versatile heavy-duty work machine.

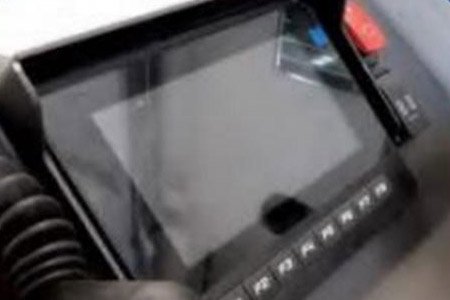

Equipped with a 7-inch high-definition display screen, supporting keyless start with password, the screen centrally displays functions such as machine preheating, light switch control, driving speed, and engine coolant temperature. Combined with an ergonomically designed control panel, the human-machine interface is highly user-friendly.

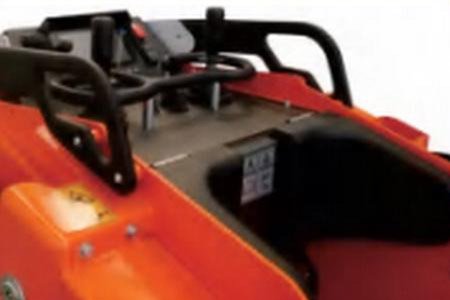

A built-in seat pressure sensor automatically locks the walking system and front-end attachments when the driver leaves the operating seat, preventing accidents caused by unattended operation or accidental activation, significantly improving the safety of daily use.

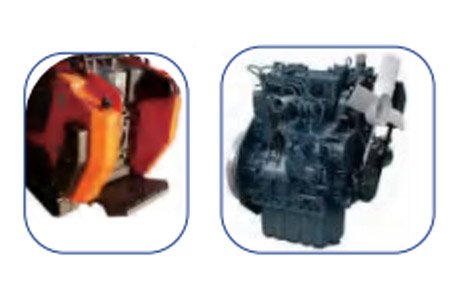

Utilizing a highly reliable Kubota engine, paired with an Italian-imported hydraulic pump and main control valve, the system offers stable hydraulic output and high durability. A large 50-liter fuel tank reduces downtime caused by frequent refueling.

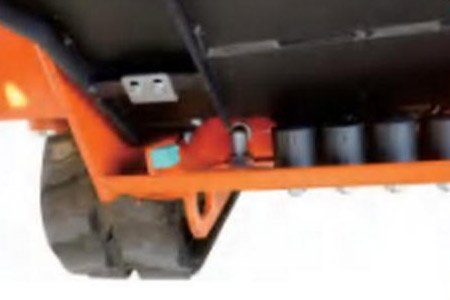

The 1130mm extended wheelbase enhances overall machine stability. Standard 230mm wide rubber tracks reduce ground pressure to 27.4kPa, maximizing protection for green areas and soft soil. Replaceable 200mm narrow tracks reduce the machine's overall width to only 900mm, significantly improving its ability to maneuver in tight spaces.
Classic skid-steer design allows for zero-radius U-turns on the spot, enabling agile maneuvering in narrow alleys and corners. Four-wheel drive provides ample traction, and excellent grip on muddy and potholed surfaces. Standard hydraulic quick-change couplings allow for rapid switching between dozens of attachments, enabling a single machine to perform multiple functions including shoveling, forking, sweeping, crushing, and snow removal.
| Engine | KUBOTA | Operating height (A) (mm) | 2870 | Overall width (without Bucket) (mm) | 900 |
| Engine model | D1105 | Overall height (B) (mm) | 1420 | Track gauge (mm) | 860 |
| Cylinder | 3 | Rear departure angle (C) (°) | 30 | Bucket width (mm) | 900 |
| Power (kW/rpm) (Gross) | 18.2/3000 | Ground clearance (D) (mm) | 200 | Drive type | Track |
| Max. torque(N.m/rpm) | 70.4/2200 | Wheelbase (E) (mm) | 1130 | Track (mm) | 200/230 |
| Cooling | Water-cooled | Length (without bucket) (mm) | 2160 | Ground Pressure(kPa) | 31.5/27.4 |
| Engine emission | - | Length (with bucket) (mm) | 2640 | Driving speed (km/h) | 5 |
| Displacement(ml) | 1123 | Dump reach (I) (mm) | 335 | Traction force(daN) | 1200 |
| Operating voltage (V) | 12 | Dump angle (J) (°) | 50.5 | Capacity of fuel tank (l) | 50 |
| SAE reserve capacity rating (Ah) | 60 | Maximum allback at full height (K) (°) | 84.5 | Hydraulic oil (l) | 30 |
| Machine weight (standard) (kg) | 1400 | Maximum climbback at ground (L) (°) | 30 | Output (l/min) | 2*40 |
| Tipping loads(kg) | 1300 | Dump height (M) (mm) | 1650 | Working pressure (bar) | 230 |
| Rated load(kg) | 455 | Hinge pin height (mm) | 2110 | Output (l/min) | 2*33 |
